11KW Steel Mute Guide Track Roll Forming Equipment Roller Shutter Door Use

Name: 11KW Steel Mute Guide Track Roll Forming Equipment Roller Shutter Door Use
Brand: BELIEVE INDUSTRY COMPANY
Price: 1 USD

Buy cheap 11KW Steel Mute Guide Track Roll Forming Equipment Roller Shutter Door Use product

Brand Name : BELIEVE INDUSTRY COMPANY

Certification : CE

Place of Origin : CHINA

Price : Contact Us For Best Machine Price

Payment Terms : T/T, L/C

Supply Ability : 50 sets per quarter

Delivery Time : 60 to 75 days

Packaging Details : Main roll forming machine nude packing with steel string fixed in the container, electric and hydraulic system covered with plastic film

Model Number : BELI SERIES

Other Name : Custom Roll Forming Machine For Mute Roller Shutter Door Track

Usage : Use to produce steel roller shutter door guide tracks guide rails

Machine Features : Electrically driven via chain and sprocket

Cutting Type : Saw cutting

Main Forming Power : 11kw

Hydraulic Power : 7.5kw

Contact Now

Steel Mute Guide Track Roll Forming Machine For Roller Shutter Door

Brief Description

This steel roll forming machine is available to produce mute guide tracks for roll-up doors based on clients' profile drawing and requirement. Main material can be roll formed are galvanized coils with thickness of 1.0mm to 1.5mm.

Work Process: uncoiling--leveling--guiding--roll forming--straightening--punching--saw cutting

No.	Whole Line Components	Quantity	Options
1.	3Ton Manual Uncoiler / Decoiler	1 set	3Ton Hydraulic Uncoiler
2.	Mute Track Rollformer	1 set	Gear Box Drive; hydraulic motor
3.	Turkey Straightener	1 set	/

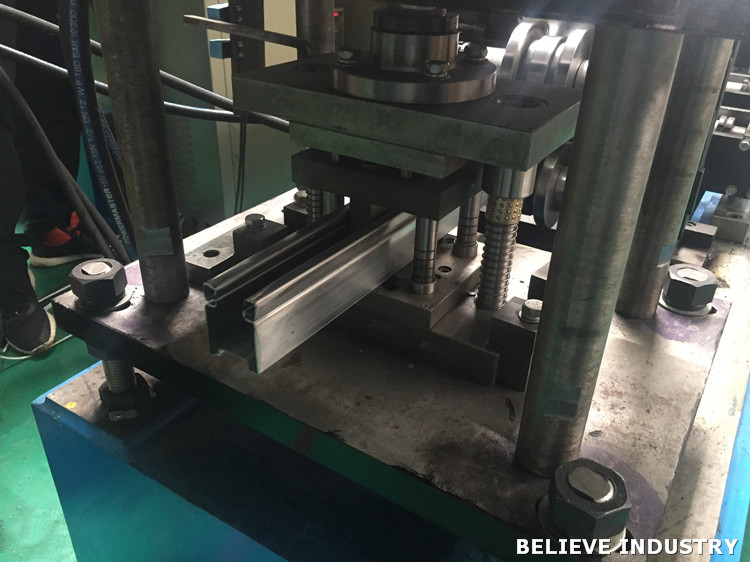

4.	Hydraulic Punching Unit	1 set	/
5.	Saw Cutting Device	1 set	Hydraulic Cutoff; Servo Flying Cutoff
6.	Run Out Tables	2 sets	/
7.	Electrical Control Cabinet	1 set	/
8.	Hydraulic Station	1 set	/

Machine Features

Control system: PLC automatic control system
Drive: 2.0" chain drive
Post punching: punch screw holes and slots after roll forming
Turkey straightener: ensure perfect straightness of the guide tracks
Saw cutting: with cooling liquid spraying on saw blade when cutting, with less spark and low burr
Machine base and roller stands: go under CNC gantry milling processing for high precision
Rollers and shafts: go under vacuum heat treatment for higher strength

Main Technical Parameters

No.	Item	Technical Parameters	Profile Drawing
1.	Material Can Be Formed	galvanized steel coils
1.	Material Thickness	0.8-1.5mm
2.	Roller Stations	20 stations
3.	Main Forming Power	15kw
4.	Forming Speed	12-15m/min
5.	Drive	chain drive
6.	Control System	PLC control system
7.	Cutting Type	saw cutting
8.	Hydraulic Power	7.5kw

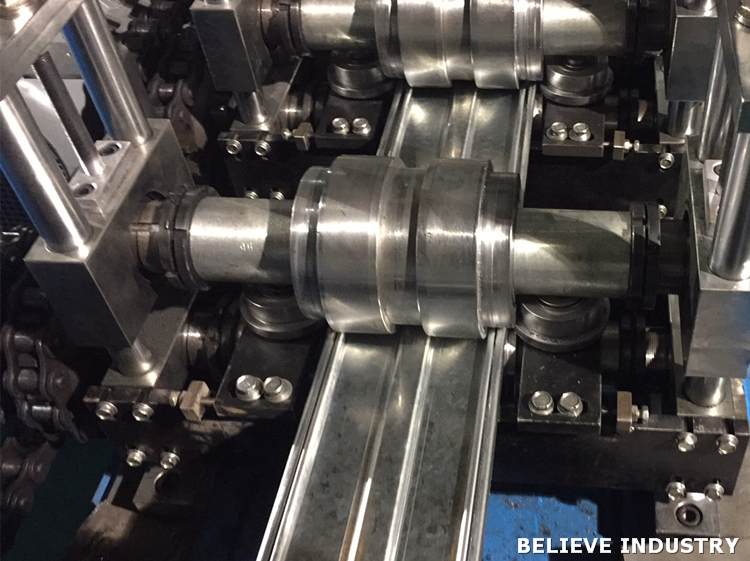

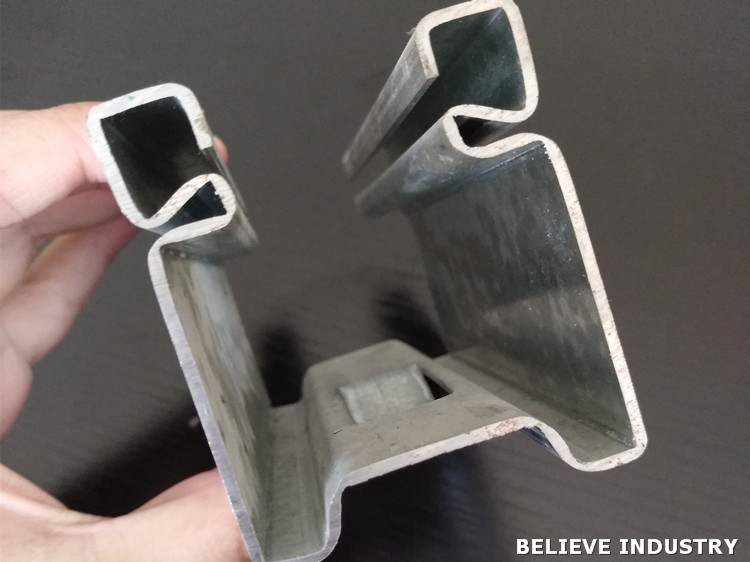

Machine Layout And Pictures Of Mute Track Rollforming Line

11KW Steel Mute Guide Track Roll Forming Equipment Roller Shutter Door Use

Believe Industry Company have full range of roll forming machines for roll-up doors components such as roller shutter slats machine, roller door panel rollformer, PU roller shutter forming machine, steel door frame manufacturing equipment, etc.

If you have any questions or need more machine details, please contact us!
