Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former

Name: Composite Steel Deck Roll Forming Machine Galvanized Mild Metal Deck Roll Former
Brand: BELIEVE INDUSTRY COMPANY
Price: 1 USD

Buy cheap Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former product

Brand Name : BELIEVE INDUSTRY COMPANY

Model Number : Composite Floor Decking Roll Forming Machine

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Contact us to get latest price

Payment Terms : 30% TT in advance, 70% TT after machine check and accept before shipment

Supply Ability : 20 sets per month

Delivery Time : 55 to 60 days

Packaging Details : Machine part nude packing and fastened inside the container with steel wire, PLC control system and hydraulic station are wrapped with plastic film.

Forming Steps : 17 steps

Forming Speed : 15m/min

Main Motor Power : 11kw

Shaft Material : 40Cr, 60mm

Roller Material : NO. 45 Steel, Fine Machining

Control System : PLC Control System

Contact Now

Composite Slab Metal Decking Floor Roll Former For Mild Steel Decking

Brief Description

Composite slab galvanized steel decking roll forming machine is designed to produce floor decking sheet with galvanized steel coils. Floor decking cooperated with concrete slab works as a permanent paltform for steel buildings.

Work Flow

Decoiling---Feeding and Guiding---Roll Forming---Cutting---Output

Main Components

No.	Item	Quantity	Layout
1.	Decoiler	1 set
2.	Steel Decking Rollformer	1 set
3.	Cutting Device	1 set
4.	Run Out Table	1 set
5.	Electric Control System	1 set
6.	Hydraulic System	1 set

Machine Features

Decoiler: 5Ton hydraulic decoiler, hydraulically powered expansion and electrically unwinding
Rollformer Machine Structure: H beam steel welded machine base, 25mm thick steel plate roller stands
Roller Material: GCr15 with 0.05mm thick Chrome plated
Shafts: 40Cr solid shafts, with heat treatment and Chrome plated
Drive: electrically diven via chain and sprocket
Control system: PLC control system
Cutoff: hydraulically powered CR12Mov blade cutting
Run Out Table: unpowered roller-path type for receiving the products

Technical Specifications

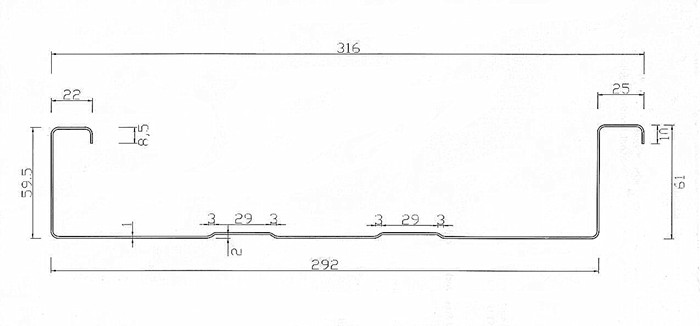

No.	Item	Specifications	Profile Drawing
1.	Forming Steps	17 steps
2.	Main Motor Power	11kw
3.	Forming Speed	15-20m/min
4.	Drive	chain drive
5.	Cutting	hydraulic cutting device
6.	Hydraulic Power	5.5kw
7.	Length Tolerance	±2mm

End Product For Reference

Composite Steel Deck Roll Forming Machine , Galvanized Mild Metal Deck Roll Former

If you are looking for a new roll forming machine line, please feel free to contact us.
