Corrugated Sheet Roll Forming Machine Galvanized Steel / PPGI Steel / Galvalume Use

Name: Corrugated Sheet Roll Forming Machine Galvanized Steel PPGI Steel Galvalume Use
Brand: Believe Industry Company
Price: 1 USD

Buy cheap Corrugated Sheet Roll Forming Machine Galvanized Steel / PPGI Steel / Galvalume Use product

Brand Name : Believe Industry Company

Model Number : Corrugated Sheet Roll Forming Machine

Certification : CE

Place of Origin : CHINA

Payment Terms : T/T, L/C

Delivery Time : 45 days

Packaging Details : Standard Seaworthy Packing

Applicable Material : PPGI Steel, Galvanized Steel, Galvalume Steel

Material Thickness : 0.1mm to 0.4mm

Main Power : 11KW

Forming Speed : 15-18m/min

Contact Now

Galvanized Steel, PPGI Steel, Galvalume Corrugated Sheet Roll Forming Machine

Corrugated Sheet Roll Forming Machine Galvanized Steel / PPGI Steel / Galvalume Use

Brief Introduction

This corrugated sheet roll forming machine can be used to produce corrugated sheets with material width from 762mm to 1250mm and material thickness from 0.1mm to 0.4mm. Main material are PPGI steel sheet, Galvanised steel sheet, Galvalume steel sheet.

Main Technical Parameters

1	Height Of Corrugations	15-20mm; can be manual adjust
2	Material Thickness	0.1-0.4mm

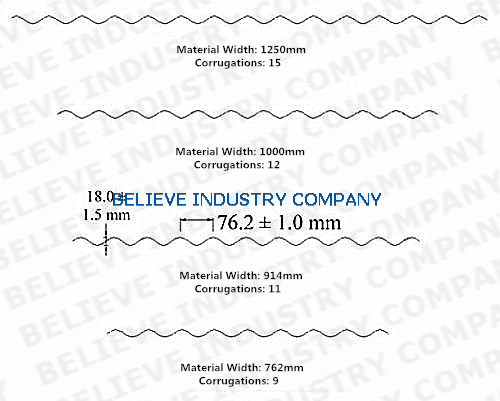

3	Material Width	1250mm, 1000mm, 914mm, 762mm
4	Applicable Material	PPGI steel sheet, galvanised sheet, galvalume sheet
5	Diameter Of Shaft	140mm
6	Main Motor Power	11kw
7	Forming Speed	15-18m/min
8	Guiding Device	Manual adjust type

Difference Between Two Types Of Corrugated Sheet Roll Forming Machine

Type & Difference

Corrugated Sheet Roll Forming Machine Galvanized Steel / PPGI Steel / Galvalume Use

Material Thickness

0.1-0.4mm

0.3-0.8mm

Process

Cutting-->Feeding-->Roll Forming

Feeding-->Roll Forming-->Cutting
